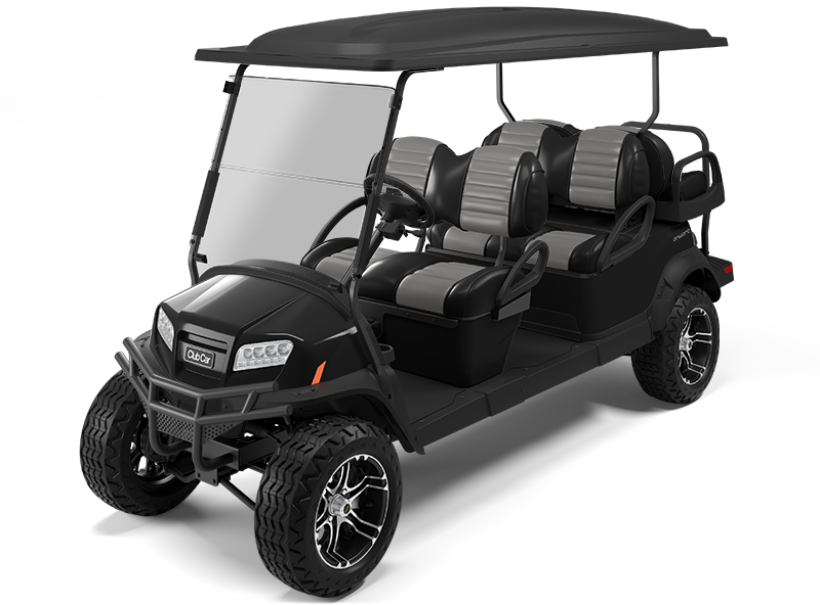

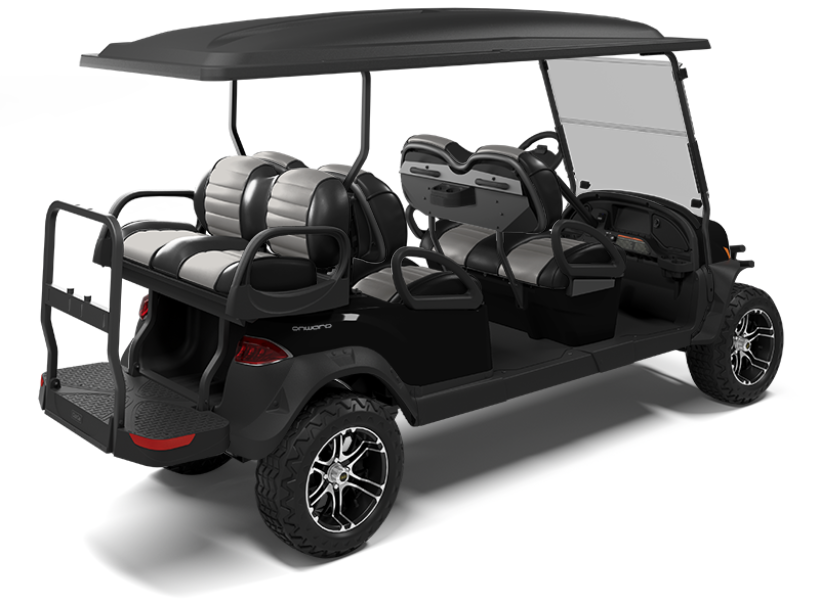

2023 ONWARD 6 PASSENGER LIFTED TUXEDO BLACK

Specifications for Onward® 6 Passenger Lifted

ENGINE 375 Amp Motor Controller

HORSEPOWER 3.7 hp (2.7kW) rated, Peak 20 hp (14.9 kW)

BATTERIES Trojan T875 flooded-lead acid batteries

CHARGER E.R.I.C. Automatic, 48-volt; UL and CSA listed

STEERING SportDrive™ — Self-compensating double reduction helical rack & pinion

FRONT SUSPENSION Independent wide track Double A-arm with Hydraulic shocks

BRAKES Self-adjusting, four wheel mechanical drum

PARK BRAKE Foot actuated, 3-position

BODY AND FINISH Front: Painted TPO | Center: Painted High Impact ABS | Rear: Painted Surlyn

TIRES 14" Mercury Wheel - 23x10-14

LXWXH 148 x 51.3 x 82

WHEELBASE 101.1 in (256.8 cm)

GROUND CLEARANCE 4.5 in (11.5 cm)

FUEL TANK CAPACITY N/A

TREAD–FRONT & REAR Front/Rear: 40 3/4/39 1/2/Metric

TOTAL VEHICLE WEIGHT 1284 lb/Metric

FRAME TYPE AlumiCore™ — Ladder-style aluminum box beam

SPEED RANGE 19 mph (30 kph)

ELECTRICAL FEATURES Front LED headlights with LED accent running lights, rear LED tail & brake lights, front & rear turn signals, state of charge or fuel meter & horn

OPTIONS/ACCESSORIES

OPTIONS/ACCESSORIES Middle Row Cupholders

OPTIONS/ACCESSORIES Premium Comfort-Grip Steering Wheel

EXTERIOR COLOR Metallic Tuxedo Black

SEATING Black/gray seat cushions

CANOPY Extra Large Black Canopy

OPTIONS/ACCESSORIES Premium Tinted Windshield

OPTIONS/ACCESSORIES Brush Guard

OPTIONS/ACCESSORIES Fender Flares

OPTIONS/ACCESSORIES Under Seat Storage Tray
