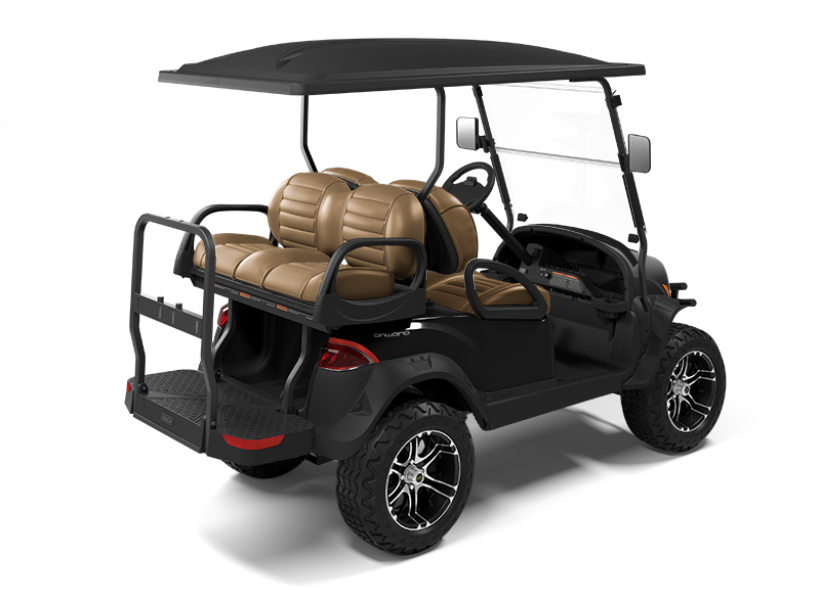

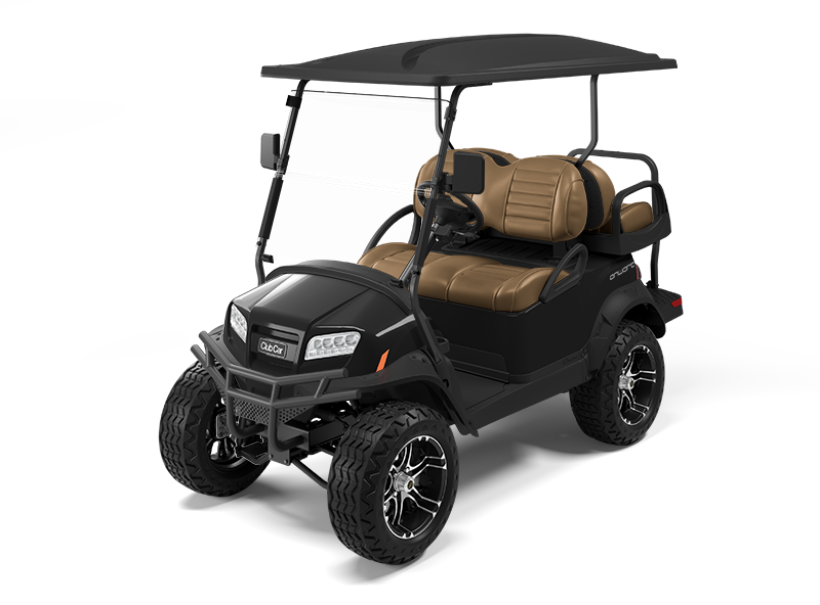

2023 ONWARD 4-PASSENGER LIFTED TUXEDO BLACK - 48V ELECTRIC

Specifications for Onward® 4 Passenger Lifted

ENGINE 48-volt Excel™ with 250 Amp, Solid State Controller

HORSEPOWER 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW);

BATTERIES (6) 8-volt

CHARGER E.R.I.C. Automatic, 48-volt; UL and CSA listed

STEERING SportDrive™ — Self-compensating double reduction helical rack & pinion

FRONT SUSPENSION Independent leaf spring w/dual hydraulic shocks

BRAKES Self-adjusting, rear wheel mechanical drum

PARK BRAKE Foot actuated, 3-position

BODY AND FINISH Front: Painted TPO; Rear: Painted Surlyn

TIRES 14" Mercury Wheel - 23x10-14

LXWXH 114 x 49 1/2 x 80 1/2

WHEELBASE 67 1/2 inches/Metric

GROUND CLEARANCE 6 3/8 inches/Metric

FUEL TANK CAPACITY N/A

TREAD–FRONT & REAR Front/Rear: 40 3/4/39 1/2/Metric

TOTAL VEHICLE WEIGHT 1125 lb/Metric

FRAME TYPE AlumiCore™ — Ladder-style aluminum box beam

SPEED RANGE 19 mph (30 kph)

ELECTRICAL FEATURES Front LED headlights with LED accent running lights, rear LED tail & brake lights, front & rear turn signals, state of charge or fuel meter & horn

OPTIONS/ACCESSORIES

OPTIONS/ACCESSORIES Premium Comfort-Grip Steering Wheel

EXTERIOR COLOR Metallic Tuxedo Black

SEATING Camello seat cushions

CANOPY Black Canopy

OPTIONS/ACCESSORIES Premium Clear Windshield

OPTIONS/ACCESSORIES Side Mirrors

OPTIONS/ACCESSORIES Brush Guard

OPTIONS/ACCESSORIES Fender Flares
