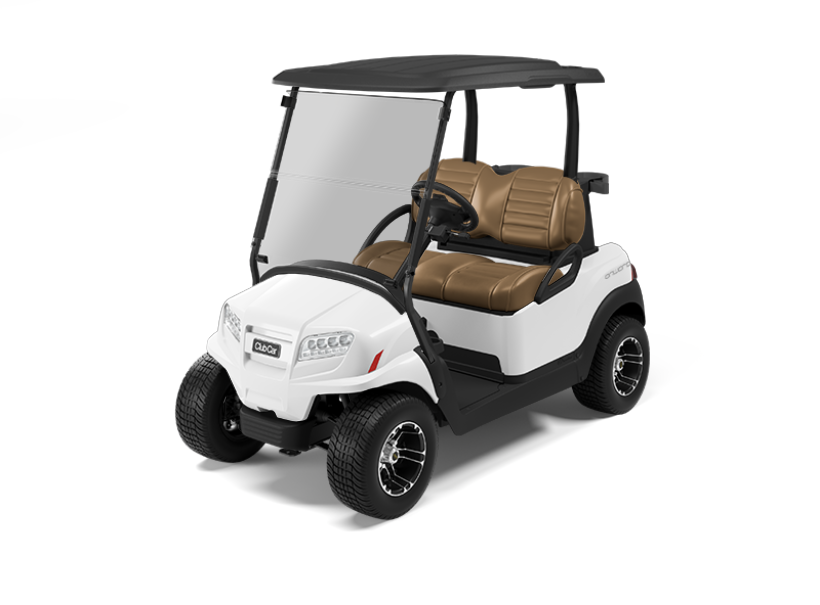

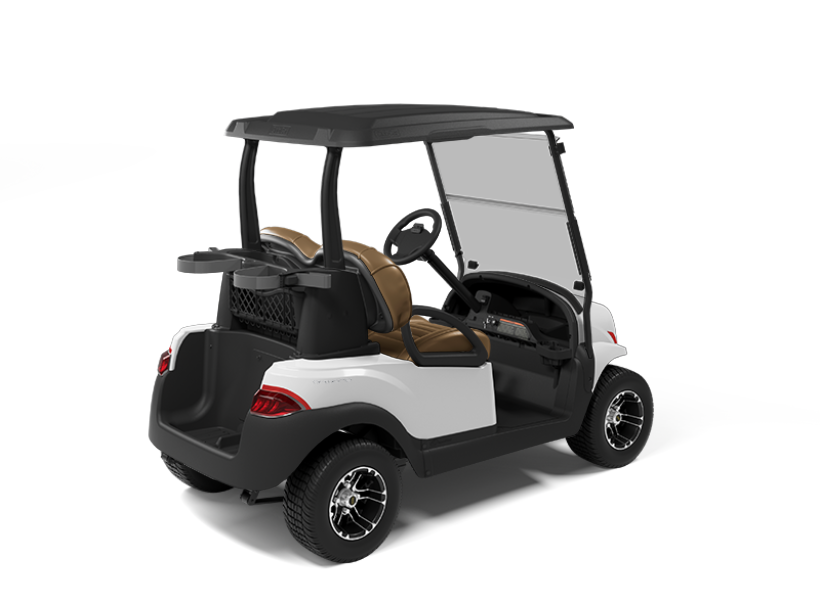

2023 ONWARD 2 PASSENGER GLACIER WHITE 48V ELECTRIC

Specifications for Onward® 2 Passenger

ENGINE 48-volt Excel™ with 250 Amp, Solid State Controller

HORSEPOWER 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW)

BATTERIES (6) 8-volt

CHARGER E.R.I.C. Automatic, 48-volt; UL and CSA listed

STEERING SportDrive™ — Self-compensating double reduction helical rack & pinion

FRONT SUSPENSION Independent leaf spring w/dual hydraulic shocks

BRAKES Self-adjusting, rear wheel mechanical drum

PARK BRAKE Foot actuated, 3-position

BODY AND FINISH Front: Painted TPO; Rear: Painted Surlyn

TIRES 10" Mercury wheel - 205/55-10 Kenda® Loadstar tires

LXWXH 92 x 48 3/4 x 71 inches

WHEELBASE 65 1/2 inches/Metric

GROUND CLEARANCE 4 1/2 inches/Metric

FUEL TANK CAPACITY N/A

TREAD–FRONT & REAR Front/Rear: 36/40 inches;Metric

TOTAL VEHICLE WEIGHT 975 lb/Metric

FRAME TYPE AlumiCore™ — Ladder-style aluminum box beam

SPEED RANGE 19 mph (30 kph)

ELECTRICAL FEATURES Front LED headlights with LED accent running lights, rear LED tail & brake lights, front & rear turn signals, state of charge or fuel meter & horn

OPTIONS/ACCESSORIES

OPTIONS/ACCESSORIES Premium Comfort-Grip Steering Wheel

SEATING Camello seat cushions

CANOPY Black Canopy

EXTERIOR COLOR Metallic Glacier White

OPTIONS/ACCESSORIES Premium Tinted Windshield
