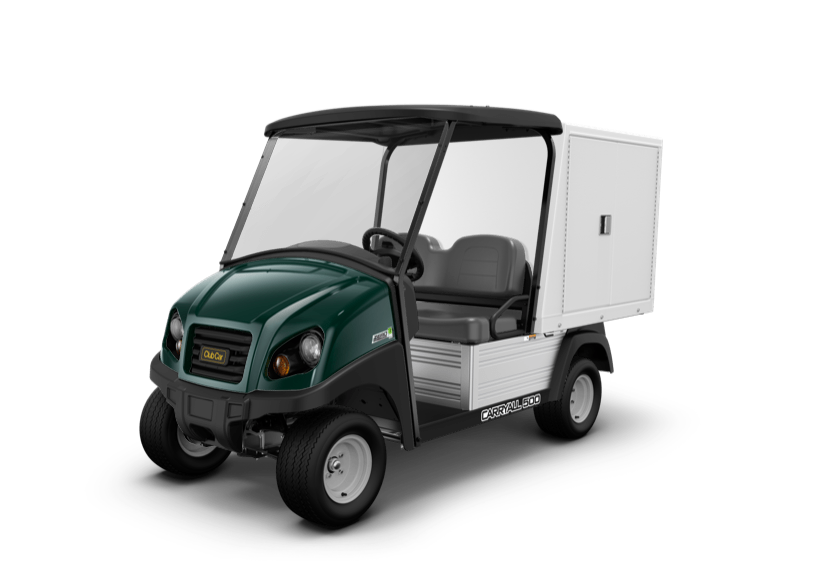

2023 CA500 AVEC VAN BOX 48V ELECTRIQUE

F5000000

ENGINE/MOTOR TYPE 48V DC

CONTROLLER 500 Amp - Solid State

HORSEPOWER (RATED) 3.7 hp (2.7kW) rated, Peak 20 hp (14.9 kW)

MAX TORQUE 71 ft-lbs (96.2 N-m) rated @ 1450 rpm

TRANSMISSION Direct drive, double reduction helical gear

GEAR SELECTION Forward/Neutral/Reverse

GEAR RATIO 12.32:1

BATTERY Eight (8) - 6 V Flooded Lead Acid

CHARGER DeltaQ QuiQ (1KW High Frequency)

HEADLIGHTS Two 37.5 Watt Halogen

STEERING MECHANISM Self-adjusting Rack and Pinion

SUSPENSION - FRONT Independent leaf spring with dual hydraulic shocks

SUSPENSION - REAR Independent leaf spring with dual hydraulic shocks

BRAKES 4-wheel Mechanical Drum

PARK BRAKE Foot Operated, Multi-lock

BODY - FRONT & FINISH ArmorFlex with automotive paint/clearcoat

BODY - REAR Aluminum

TIRES - FRONT 20 x 10-10, 6-ply

TIRES - REAR 20 x 10-10, 6-ply

WHEELBASE 78.1 in (198.3 cm)

OVERALL HEIGHT 47.1 in (119.6 cm)

OVERALL LENGTH 118 in (299.7cm)

BED LENGTH X WIDTH X HEIGHT (CARGO BOX) 44.2x47.5x10.5 in (112.2,120.6,26.6 cm)

GROUND CLEARANCE (DIFFERENTIAL) 5.6 in (14.2 cm)

TRACK WIDTH (FRONT) 36.6 in (92.9 cm)

TRACK WIDTH (REAR) 39.5 in (100.3 cm)

MAX WIDTH (W/O MIRRORS) 50.3 in (127.7cm)

TOTAL VEHICLE CAPACITY 1200 lbs (544.3 kg)

BED LOAD CAPACITY 800 lbs (362.8 kg)

TOWING CAPACITY 1200 lbs (544.3 kg)

COMBINED GROSS VEHICLE CAPACITY 4-wheel brake 1500 lbs (680.3 kg)

SPEED 5-17 mph

WARRANTY 4 year limited battery warranty

WARRANTY 3 year limited powertrain and frame warranty

WARRANTY 2 year limited remaining vehicle
